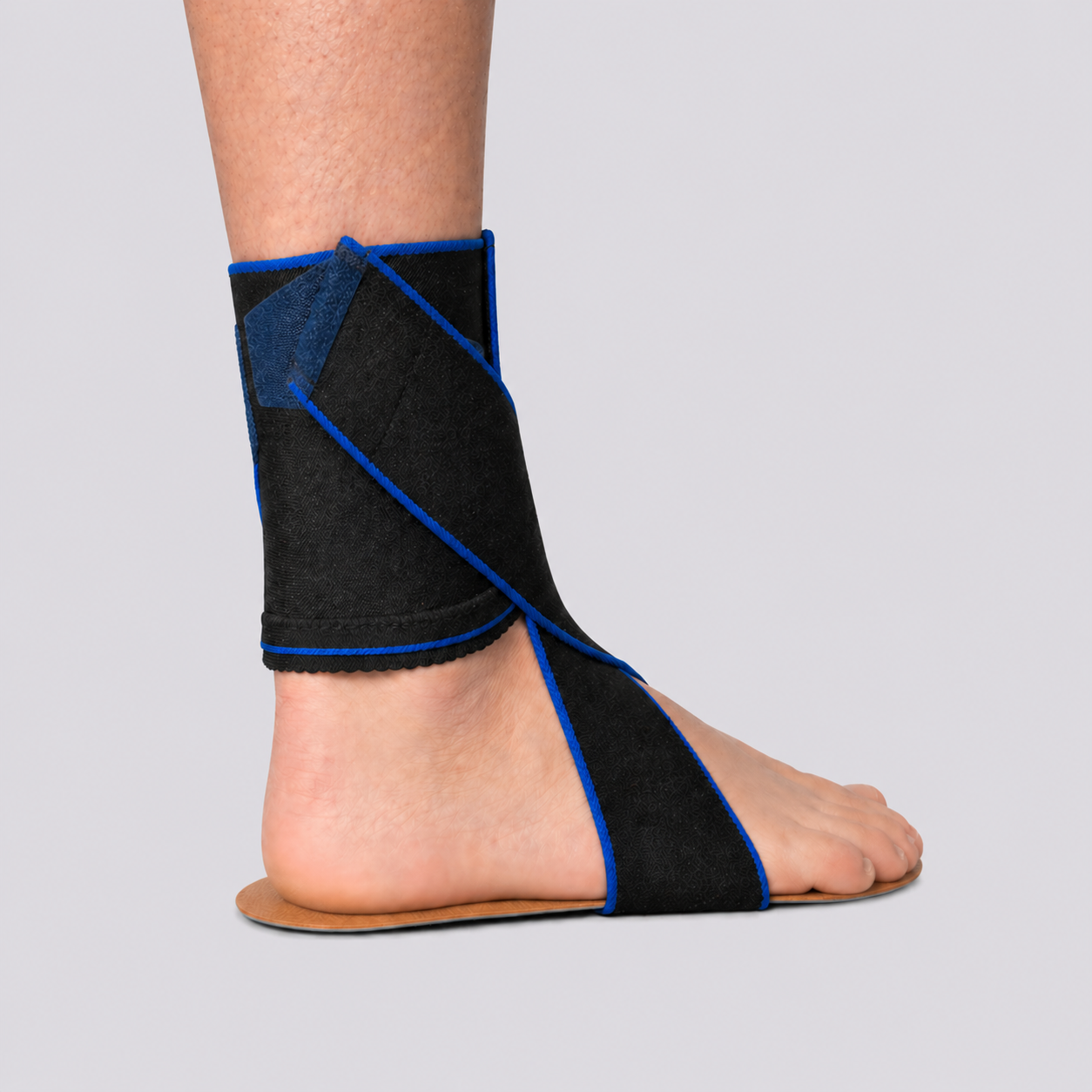

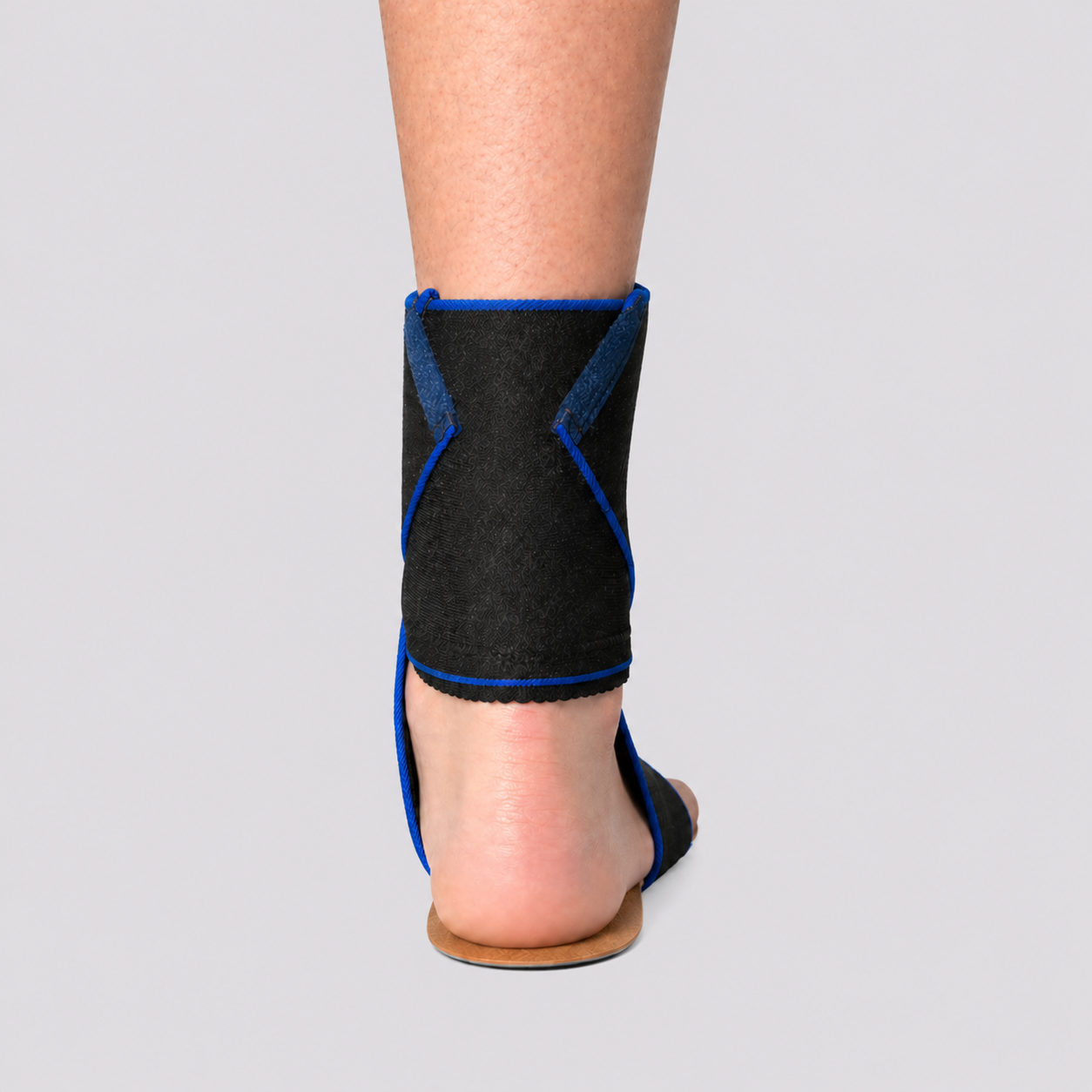

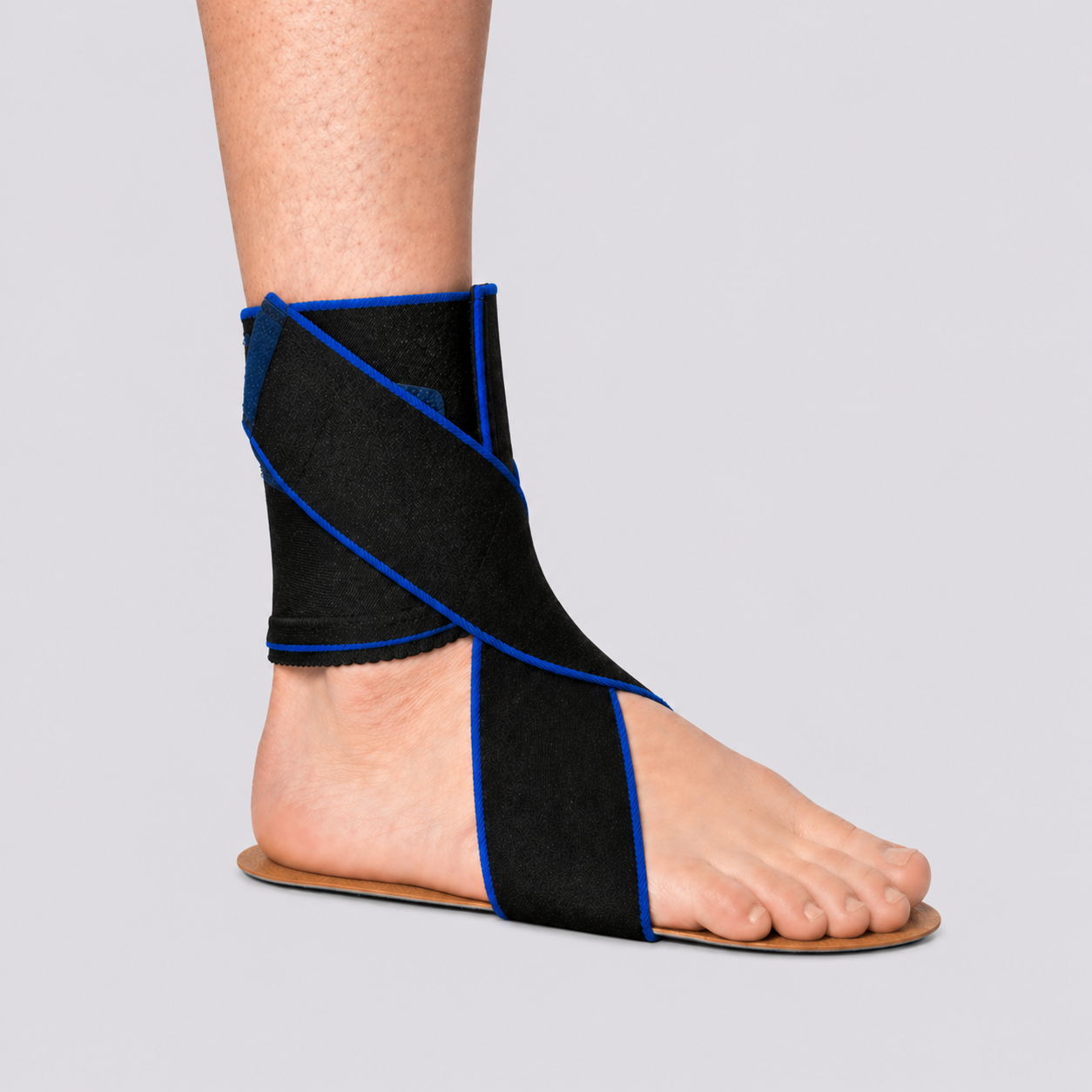

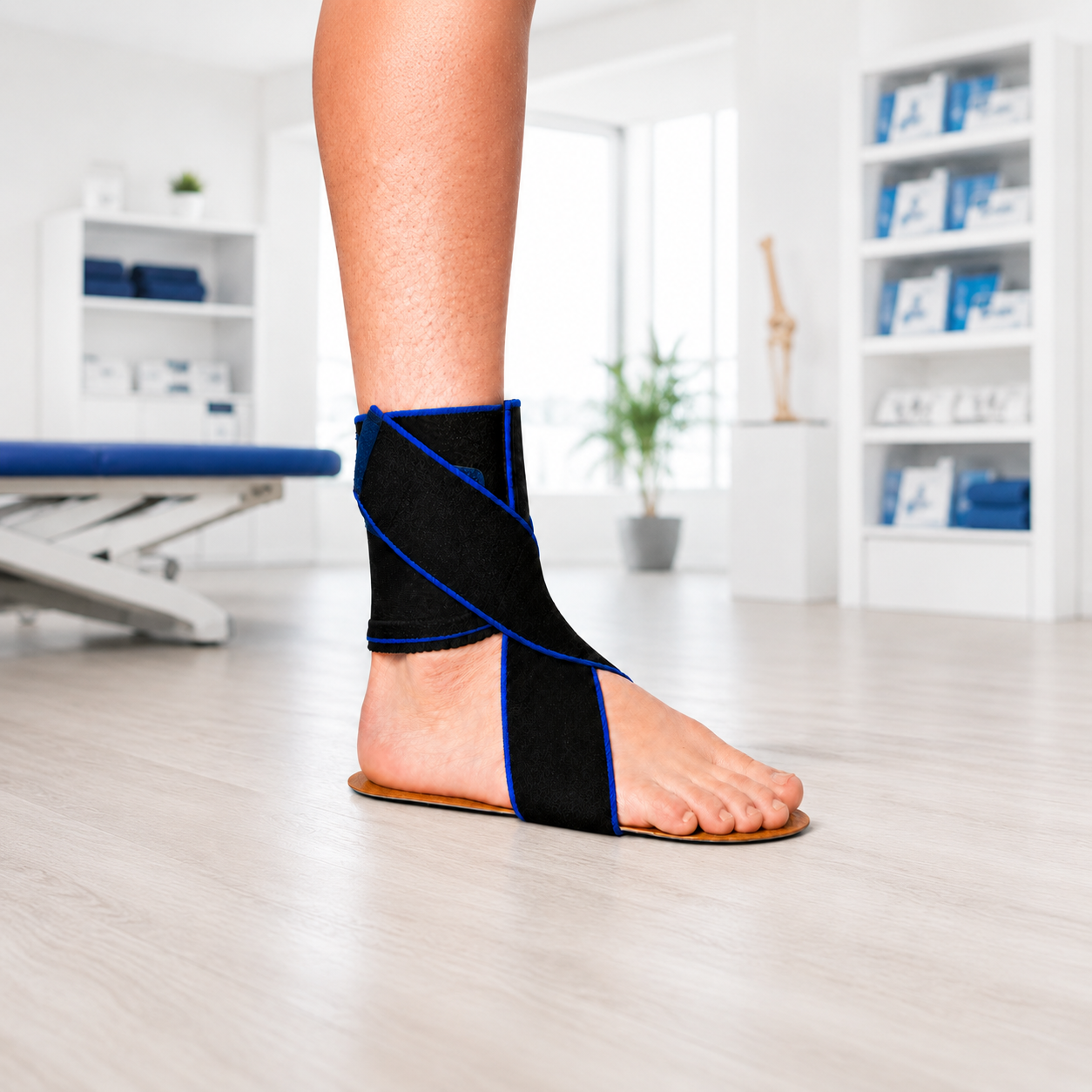

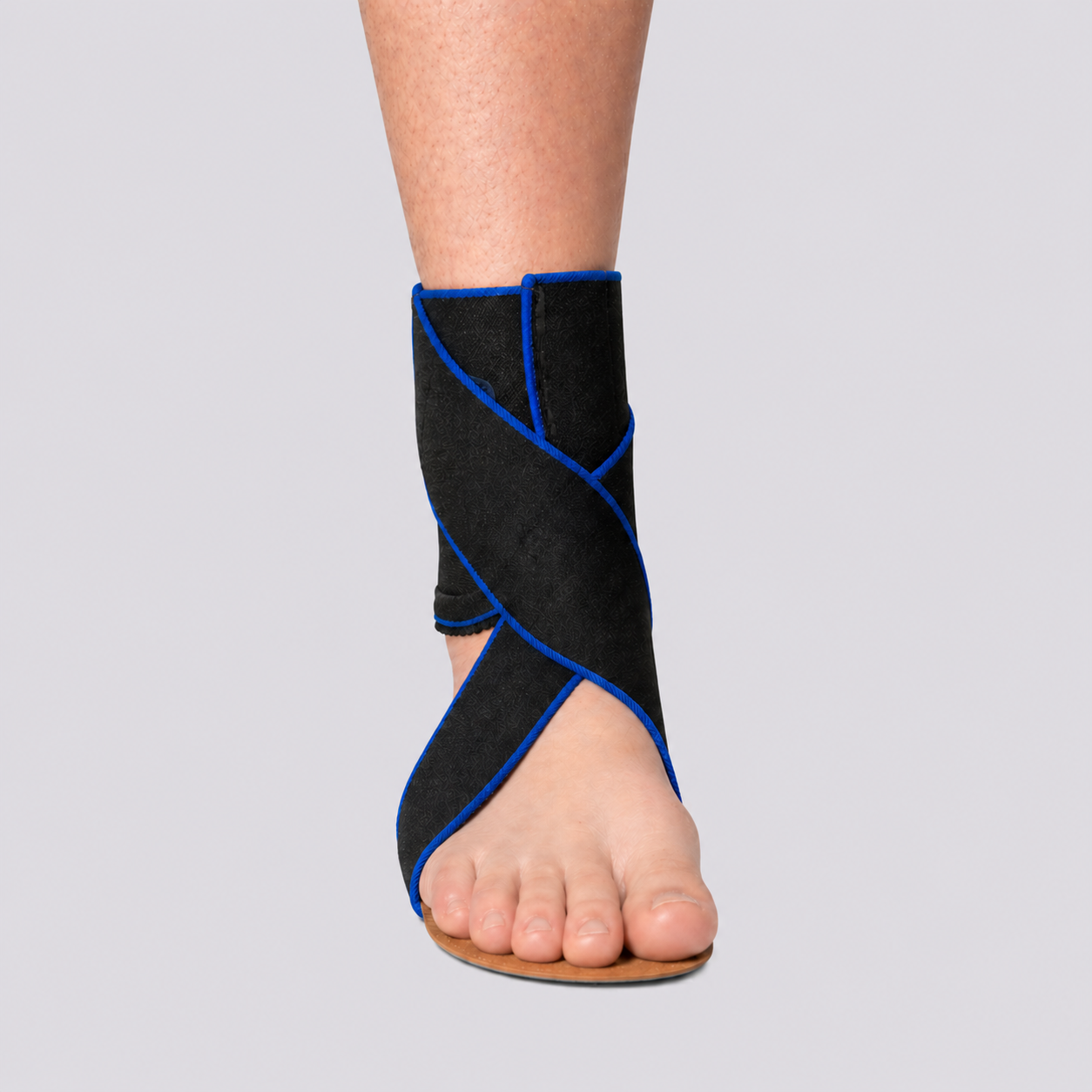

arthrosan® Foot Drop Orthosis original
arthrosan® Foot Drop Orthosis original
The arthrosan original foot drop orthosis is a dynamic foot drop orthosis for functional support in cases of foot drop, fallen foot, and restricted forefoot lift. It was developed for a rather light, flexible, and everyday-appropriate solution.
Manufacturer information:
arthroven GmbH, Margarethe-Scherb-Str. 38, 78052 Villingen-Schwenningen, Germany, E-Mail: info@arthroven.de

At a Glance
- Dynamic support for foot drop
- For drop foot and restricted forefoot lift
- Rather light, flexible and everyday care
- Thermoplastically moldable support sole
- Spring mechanism to assist foot lift
- Available for left and right in sizes 22 to 50
Medical Device Register:
HMV-Pos. Recommendation 23.03.02.xxxx
Collapsible content
Product advantages
The arthrosan original foot drop orthosis was developed for light, dynamic, and everyday support for foot drop. It combines a thermoplastically formable support sole with a semi-elastic figure-8 strapping, an ankle cuff, and a one-handed clasp.
Key advantages:
- lightweight and visually discreet foot drop orthosis for everyday use
- semi-elastic figure-8 strapping to support foot lift
- continuously adjustable tension strap for pronation and supination
- thermoplastically formable support sole for individual adjustment
- easy handling due to self-closing cuff and one-handed clasp
- comfortable padding in the ankle area, without pressure on the Achilles tendon area
The arthrosan original is designed for professional fitting by orthopedic technicians. Orthopedic shoes are generally not required.
Who is the original arthrosan foot lift orthosis suitable for?
The arthrosan Foot Drop Orthosis Original may be suitable for people who need light, flexible, and dynamic support when walking with foot drop. It is designed for situations where foot lift needs to be functionally supported without unnecessarily hindering existing muscle activity.
Typical areas of application may include:
- flaccid peripheral paralysis
- general foot drop
- drop foot or limited forefoot lift
- post-stroke care
- hemiparesis
- mild to moderate spastic foot paralysis, for example in the context of multiple sclerosis
- functional support in the upper and lower ankle joint
Which orthosis is suitable always depends on the diagnosis, gait pattern, support needs, footwear situation, and professional fitting. The selection should therefore be made through a medical supply store or orthopaedic technical personnel.
Mode of action
The arthrosan foot lifter orthosis original is designed to dynamically support foot lift during walking. The semi-elastic figure-of-eight strap can support forefoot elevation and help guide the foot more controllably during movement.
The adjustable tension strap allows the effect on pronation and supination to be individually regulated. This can help the orthosis support a more physiological gait and a more natural rolling motion. The natural rolling axis is maintained, and existing muscle activity is not blocked.
The thermoplastically deformable support sole forms the basis for individual adaptation. The self-closing cuff with one-hand clasp makes it easier to put on in everyday life. The closure strap with stop function supports safe handling.
Through the functional support of foot lift, the arthrosan original can help improve gait and reduce the tendency to stumble in everyday life. However, the specific effect always depends on individual adaptation, gait pattern, and the respective care situation.
Material, Care & Notes
Material / Construction
Thermoplastically moldable footplate, spring mechanism with spring rubber and ankle cuff made of wide woven elastic band.
Care Instructions
The arthrosan foot lifter orthosis original can be cleaned with water and neutral soap. A skin-friendly disinfectant is suitable for disinfection. After cleaning, the orthosis should be thoroughly dried. Direct heat from heaters, ovens, or strong sunlight should be avoided.
Wearing Instructions
Before wearing, the orthosis should be professionally fitted and its fit, application, and shoe situation explained. Before each wear, a brief visual inspection for damage, fasteners, and function is recommended.
Application Instructions
The orthosis is intended for supportive use when walking. Velcro areas can be carefully cleaned with a brush if necessary. If there are fit problems, altered function, or persistent discomfort, the orthosis should be checked.
Medical Note
In case of skin irritations, pressure points, swelling, redness, circulatory disorders, sensory disorders, wound healing disorders, or uncertainties in use, use should only occur after professional consultation.
Note on Provision
The arthrosan original is standard for health insurance. Specific provision and possible cost coverage should be clarified on a case-by-case basis with a doctor, medical supply store, or cost bearer.
Delivery & Returns
Scope of delivery
1 original arthrosan foot lift orthosis in the selected version for left or right and in the appropriate size.
Delivery
The original arthrosan foot lift orthosis is not shipped directly via the shop. Selection, fitting and supply are carried out individually by the medical supply store or orthopedic technical personnel.
Returns
For questions about supply or further procedures, arthroven will be happy to assist you personally. The respective applicable conditions within the framework of the individual supply apply.
Size & Fit
The arthrosan foot lifter orthosis original is available for left and right and is selected based on the appropriate shoe size. Since it is a foot lifter orthosis that requires adaptation, in addition to the size, side selection, gait pattern, shoe situation and professional adaptation are crucial.
Available sizes:
22 to 50
Side:
Left or right
How to choose the right size
The selection is based on shoe size. However, the final fitting should always be checked and adjusted by orthopaedic technical personnel.
Fit
The orthosis should guide securely without causing pressure points, pain or skin irritation. The fit, foot lift, ankle cuff and shoe situation must be suitable for the individual fitting.
If in doubt
If you are unsure about the correct size, side or model, we recommend consulting a medical supply store or orthopaedic technical personnel.
Difference between variants
The arthrosan original is rather light, flexible and dynamically constructed. In comparison, the arthrosan support offers more guidance and stability for fitting situations with a higher need for support.
Frequently asked questions about the arthrosan foot lifter orthosis original
Can the arthrosan foot lifter orthosis be ordered directly online?
No. The original arthrosan foot lifter orthosis requires adaptation and is not offered to private individuals as a classic online purchase. Supply is usually provided by a medical supply store or orthopedic technical personnel.
Who is the original arthrosan foot lifter orthosis suitable for?
The orthosis may be suitable for foot drop, flaccid foot, peripheral paralysis, after stroke, in hemiparesis, and in cases of mild to moderate spastic foot drop problems.
How does the arthrosan foot lifter orthosis original support walking?
It is designed to functionally support forefoot lift and provide additional guidance to the foot during movement. This can contribute to greater control and safety in everyday life.
In which sizes is the original arthrosan foot lifter orthosis available?
The orthosis is available in shoe sizes 22 to 50 and can be selected for either left or right.
Does the arthrosan foot lifter orthosis need to be custom-fitted?
Yes. A professional fitting is important so that the fit, function, footwear situation, and wearing comfort are suitable for the individual's needs.
What is the difference between arthrosan original and arthrosan support?
The arthrosan original is lighter, more flexible, and dynamically constructed. The arthrosan support offers more guidance and security due to its stabilizing construction for those with greater support needs.
Contact us for personal advice
If you have questions about the arthrosan original foot drop orthosis, the suitable version or the care pathway through a medical supply store, we will be happy to support you personally.
